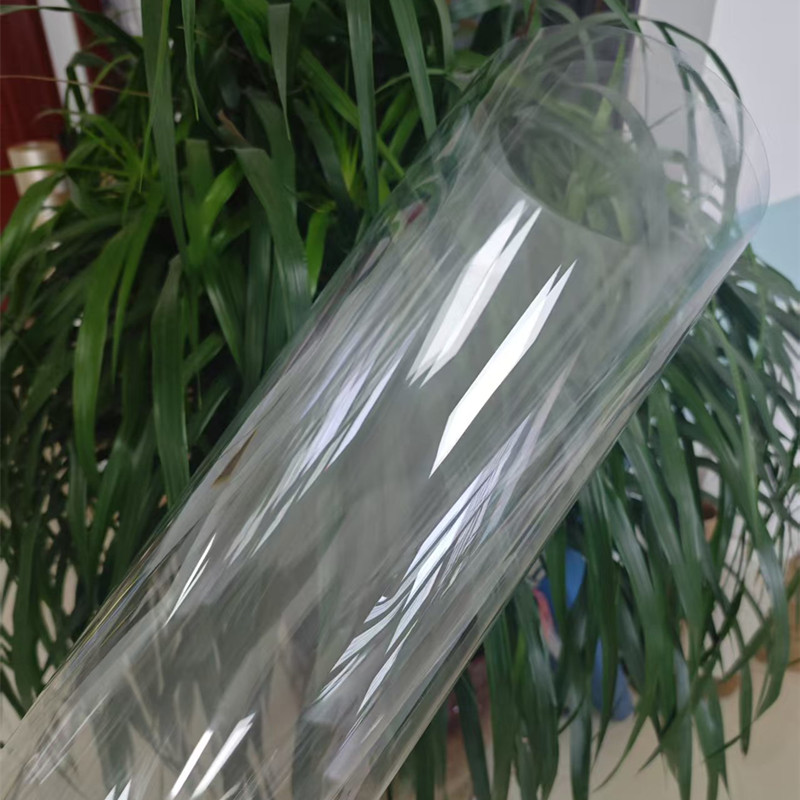

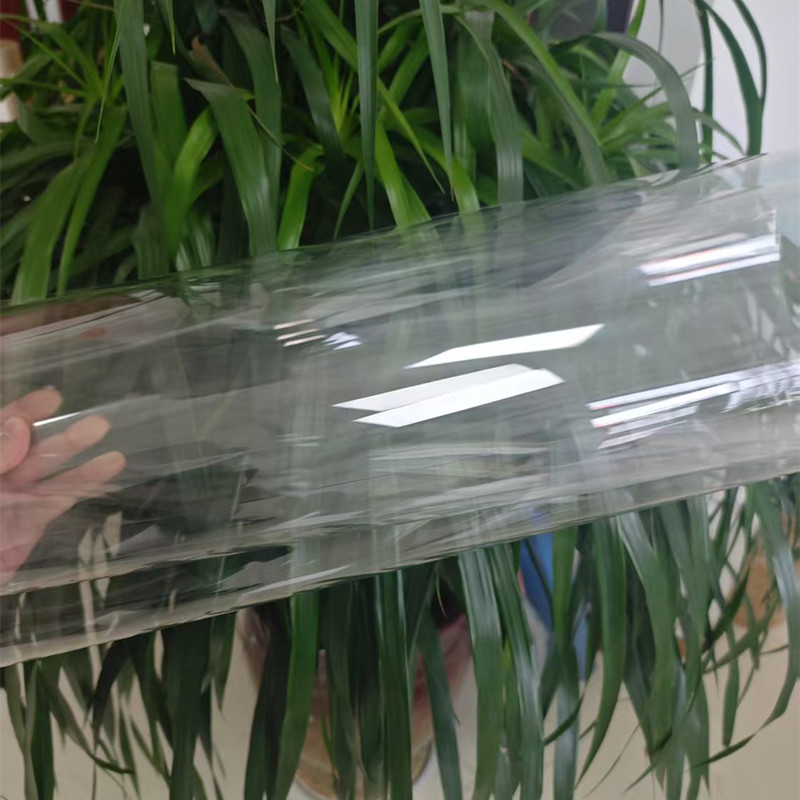

PET Film 0.25mm-1mm PET Plastic Sheet Roll

Technical Specifications

• Thickness Range: Typically 0.18 mm - 2 mm for general applications, with specialized grades available from 4.5 microns to 100 mm thick.

• Width Range: 350 mm - 1300 mm for standard rolls, with custom sizes such as 2000 x 1000 mm or 3000 x 620 mm available for engineering uses.

• Color Options: Clear/transparent, black, white, or customizable colors to meet specific design needs.

• Key Physical Parameters: Specific gravity of 1.345 g/cm³ (ASTM D-792), melting temperature of 250 ± 5 °C (ASTM D-3418), glass transition temperature of 65 - 75 °C (ASTM D-3418), and tensile elongation at break ≥ 450% (ASTM D-638).

Major Applications

• Packaging: The largest application area, including food packaging (trays, clamshell containers, lids, drinking water cups, frozen food packs), pharmaceutical blister packs, cosmetic packaging, electronic component trays (including anti-static/conductive variants for sensitive devices), and blister packaging for retail goods, tools, and toys. It is also widely used in beverage bottle production.

• Engineering & Industrial: Manufactured into bearings, gear wheels, control discs, insulators, tank lids, pump parts, and friction strips for mechanical engineering, maritime engineering, and electrical engineering. It serves as gas barriers and construction materials (panels, roofing, insulation) due to its strength and environmental resistance.

• Consumer & Specialty Goods: Used in stationery (folders, covers), medical devices (sterile trays, syringe packaging), photographic/X-ray films, audio/video tapes, solar control films, and business card laminations. It can also be processed into PET fiber for textiles and household goods.
